Fan Filter Unit(FFU)

fan filter unit

With over two decades of hands-on experience designing, specifying, and commissioning cleanroom systems across global semiconductor fabs, biopharma facilities, and high-precision manufacturing sites, I’ve seen how critical the fan filter unit is—not as a standalone component, but as the operational heart of a controlled environment. It’s not just about airflow; it’s about repeatability, serviceability, long-term particle control, and integration integrity with the ceiling grid. Our fan filter units are engineered for real-world reliability: low-vibration EC motors, ISO Class 3–5 compliant HEPA/ULPA filtration (tested per EN 1822), and modular frames compatible with standard Fan filter unit ceiling grid, Fan filter unit ceiling grid Design, and Fan filter unit ceiling grid Factory configurations. They support seamless retrofit into existing FFU ceiling infrastructures and new-build FFU ceiling grid system deployments—without requiring structural rework or extended downtime.

Technical Specifications

Below are typical performance parameters for our standard 1200×600 mm and 1200×1200 mm fan filter units, validated under ISO 14644-3 test conditions at rated voltage and ambient 20–25°C:

Real-World Application by Sector

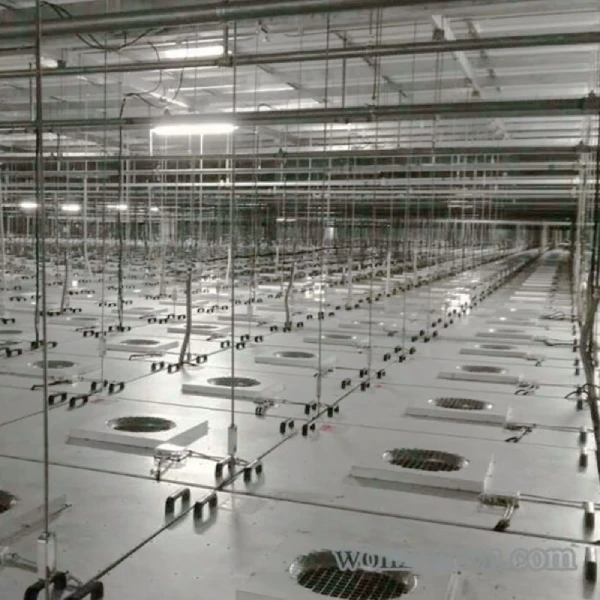

In semiconductor & electronics manufacturing, consistent laminar flow and sub-micron particle removal are non-negotiable—especially during photolithography and wafer bonding. Our ffu clean room units integrate directly into T-bar and cassette-based FFU ceiling grid systems, maintaining uniform face velocity (±5%) across large bays without hotspots or turbulence. For biopharma and life sciences, where microbial control and regulatory traceability matter most, units include optional integrated particle counters and filter integrity test ports—fully compliant with EU GMP Annex 1 and FDA guidance. In aerospace and precision optics, vibration sensitivity demands ultra-low mechanical resonance; our units feature dual-stage isolation mounts and rigid frame damping. Food & beverage facilities benefit from IP54-rated housings and stainless steel hardware for washdown environments. Automotive battery cell cleanrooms rely on scalable FFU ceiling system layouts that accommodate dynamic zoning—e.g., ISO 7 in electrode mixing, ISO 5 in cell assembly—without redesigning the entire ceiling grid. Data centers with hyperscale AI chip packaging lines use our units for localized ISO 6–7 zones above critical toolsets, reducing total HVAC load by up to 32% versus full-room recirculation. And in solar cell and EV power electronics production, thermal stability and humidity resilience are built-in—no derating required at 35°C/70% RH ambient.

Integration with Malaysia cleanroom manufacturer

For engineering teams across Malaysia evaluating suppliers, partnering with a trusted Malaysia cleanroom manufacturer ensures local technical support, coordinated ceiling grid alignment, and seamless FFU commissioning—even when production occurs outside Malaysia. This collaboration covers everything from FFU ceiling grid Design validation (including load-bearing analysis and fire-rated suspension compatibility) to on-site balancing and ISO 14644-1 certification support. It also simplifies procurement logistics, spares stocking, and lifecycle maintenance planning—critical when uptime directly impacts yield. Note: ffu price varies based on filter grade, control interface, and integration scope—not just unit count. We provide transparent, project-specific quotations aligned to your facility’s operational profile and compliance roadmap.

Long-Term Performance Assurance

Cleanroom performance degrades silently—filter loading, motor drift, and seal fatigue rarely trigger alarms until particle counts breach limits. That’s why every unit includes embedded runtime logging, filter differential pressure monitoring, and motor health diagnostics accessible via local HMI or cloud dashboard. Our service protocols follow ISO 14644-4 Annex D: scheduled filter replacement intervals are calculated using actual site particulate loading data—not generic calendar-based assumptions. We also offer third-party validation of FFU ceiling grid Factory pre-assembly—ensuring dimensional accuracy, gasket compression, and electrical continuity before shipment. Whether you’re building your first ISO 5 line or upgrading legacy FFU ceiling infrastructure, reliability starts with specification discipline—not just supplier reputation. Let’s discuss how your next ffu clean room deployment can meet both today’s specs and tomorrow’s scalability needs.
